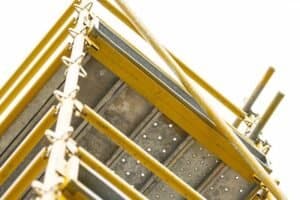

QUICKSTAGE SCAFFOLDING

Quickstage Scaffolding, also known as Kwikstage Scaffolding, is a type of easy erect modular scaffolding system with unparalleled durability.  It can mold itself to the shape of the built structure, making it ideal for different jobs. No loose fittings, as one of its biggest features, greatly simplifies its storage and transportation. This type of scaffold can be applied in a range of situations, like basement propping, bridges, climbing formwork, column formwork, concrete formwork, facade retention, tunnels, etc.

QUICKSTAGE SCAFFOLDING

components of quickstage scaffolding

QUICKSTAGE SCASFFOLDING COMPONENTS STANDRD

Standard

0.5m: 48.3*4.0*485.3mm

1.0m: 48.3*4.0*990.6mm

1.5m: 48.3*4.0*1485.9mm

QUICKSTAGE SCASFFOLDING COMPONENTS LEDGER

LEDGER

Material: Q235

Tube: 48.3*3.2mm

Surface Finish: HDG

QUICKSTAGE SCASFFOLDING COMPONENTS BRACES

DIAGONAL BRACES

Material: Q235

Tube: 48.3*3.2mm

Surface Finish: HDG

QUICKSTAGE SCASFFOLDING COMPONENTS STEEL BOARD

STEEL BOARDS

Length: 2.4m ; 1.8m; 1.2m; 0.7m

Thickness: 1.8mm galv.iron sheet

Certificate: AS 1577-1993

QUICKSTAGE SCASFFOLDING COMPONENTS TIE BAR

TIE BAR

Material: Q235

Steel: 50*50*5.0mm

Surface Finish: HDG

QUICKSTAGE SCASFFOLDING COMPONENTS TRANSOM

TRANSOM

Material: Q235

Size:50*50*5mm

Surface Finish: HDG

Quickstage Scaffolding-Hop up Bracket

hop up bracket

Material: Q235

Tube: 0D48.3*3.2mm

Surface Finish: HDG

Quickstage Scaffolding-Ladder Access Transom

TIE BAR

Material: Q235

Steel: 50*50*5.0mm

Surface Finish: HDG

ladder access TRANSOM

Material: Q235

Surface Finish: HDG

Length: 1.2/1.8/2.4m

Quickstage Scaffolding-Aluminium Stair

Aluminium Stair

1.5m Rise Stair/6.61-T6

Stair Handrails/s235(Q235)

Stair Top Rails/s235(Q235)

Quickstage Scaffolding-Stretcher Stair

Stretcher Stair

1.5m Rise Stair/6.61-T6

Stair Handrails/s235(Q235)

Stair Top Rails/s235(Q235)

Quickstage Scaffolding-Solid Base Jack

Solid Base Jack

Material: Q235

Rod: 0D.36*650mm

Zinc Plated Surface

Solid Swivel Base Jack

Material: Q235

Rod: 0D.36*650mm

Zinc Plated Surface

Toeboard Bracket End

Material: Q235

36mm*650mm*150mm

Surface Finish: HDG

Toeboard Clip

Material: Q235

36mm*650mm*150mm

Surface Finish: HDG

ADAPTABILITY

Quickstage Scaffolding has the ability to mold itself to the shape of the structure being built. The primary utility of the modular Quickstage system is that it allows for the platforming to be altered to suit different shapes, allowing easier access to certain structures. The system is made up of several modular components that make it simple to modify the platforming to suit the project as it changes.

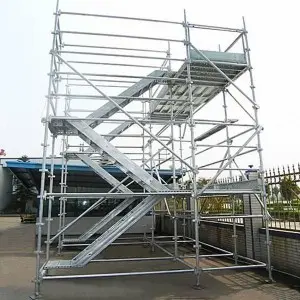

Quickstage Scaffolding overview
quickstage scaffolding

surface treatment

In order to extend the life of steel Quickstage Scaffolding, APAC’s Quickstage Scaffolding system is always required to be finished with paint or galvanizing protection.The surface treatment includes powder-coated, cold-galvanized, and hot dip galvanized which can last over 20 years. Quickstage scaffolding is made of tough material and provides long-term benefits.

easy to install

It is a fasten-free system that is assembled in a series of individual grids. In a single move, four horizontal brackets can be attached to a single pressing, significantly speeding up the process of erecting the system. Far fewer workers are required to set up Quickstage scaffolding than would be needed for a traditional product, which helps you save money in labour costs and reduces liability.

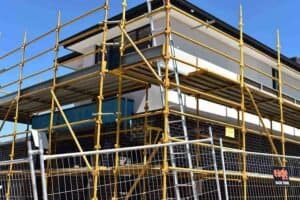

quickstage-scaffold-application
quickstage scaffolding

direct to factory

We not only produce scaffolding, but also have good cooperation with many factories of building materials. At the same time, provide for the customer, including warehouse management, efficient production scheduling, including the service as a whole. All Scaffolding and formwork products imported by our company go through thorough quality checking, from the raw material, manufacturing, finishing, packing and loading stages.

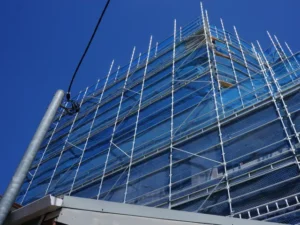

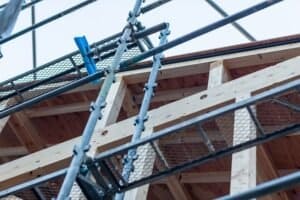

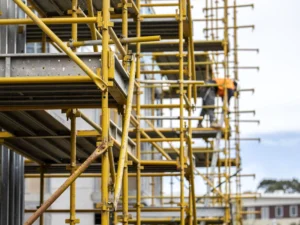

applicationS of qucikstage scaffolding

faq guide

A: Yes, we could provide any styles as per customer requirements.

A: We will be offering various testing videos and you can subscribe to our YouTube to get our latest updates.

A: The discount depends on your order quantity. Bulk order will be cheaper than small quantities.

A:Different kinds of the product offer different warranty, our consultant will tell you the exact warranty of each edge protection system product.b. Professional engineer good at English provide 7*24 online service for any issue.c. Long-term new product replacement service.

A: Available sample order, 3 – 7 days;mass production order, 10 – 40 days (based on different quantities);For some distant places, the delivery time may be a little bit longer.By Express: DHL UPS TNT FEDEX or EMS E-packing.By Sea: Inform us of the Sea Port to check which ship line.

A: Our edge protection systems have been tested intensively before being brought to market,we already have relevant test reports and videos.We provide samples, costs depend on the price of the products. Sample fee and freight cost shall be paid by the buyer.Please do not hesitate to contact us if you have any interest.

 A: We are a professional supplier of edge protection systems in China. OEM / ODM customized are provided according to customers’ various applications and demands.

related products

more questions?

APAC is the one of the biggest Quickstage Scaffolding manufacturer in China. We have been always sticking to standards for welding quality control. For your Quickstage Scaffolding needs, you can always trust APAC. We accept different kinds of orders for Quickstage Scaffolding. If you ever have any questions about the Qucikstage Scasffolding, do not hesitate to get in touch with us. We can help you set up an ideal arrangement for the projects you need.
