Aluminum Shoring Post
An aluminum shoring post is an adjustable temporary support component used to support slabs, beams, ceilings, formwork systems, and other structural elements during construction.
Compared with conventional steel shoring posts, aluminum shoring posts use lightweight aluminum alloy to achieve easier handling while maintaining dependable support performance. Their adjustable design allows contractors to adapt the support height according to different project requirements.

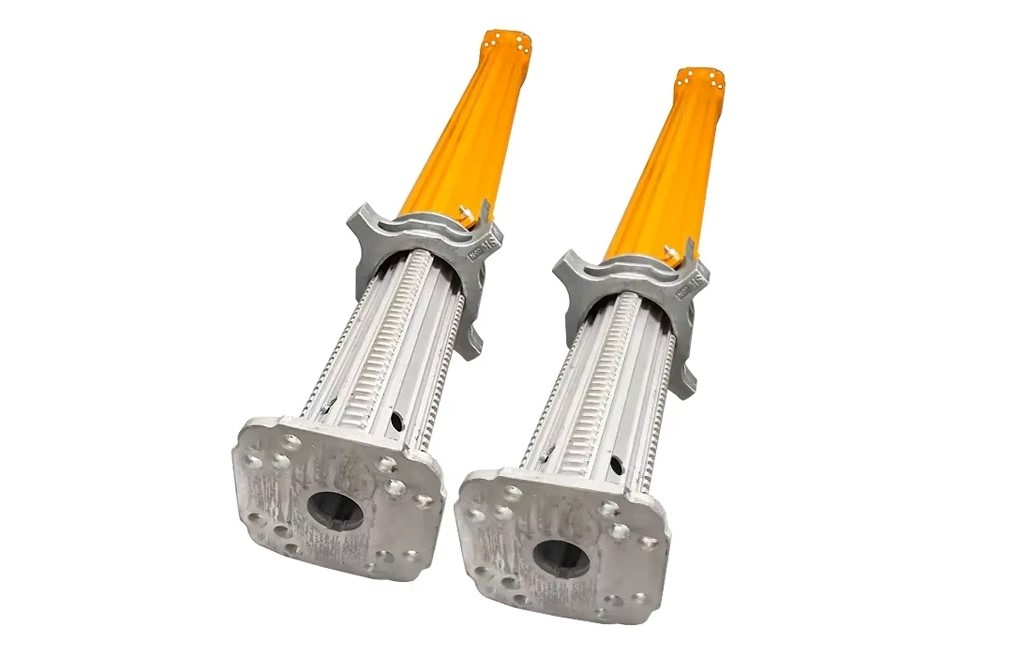

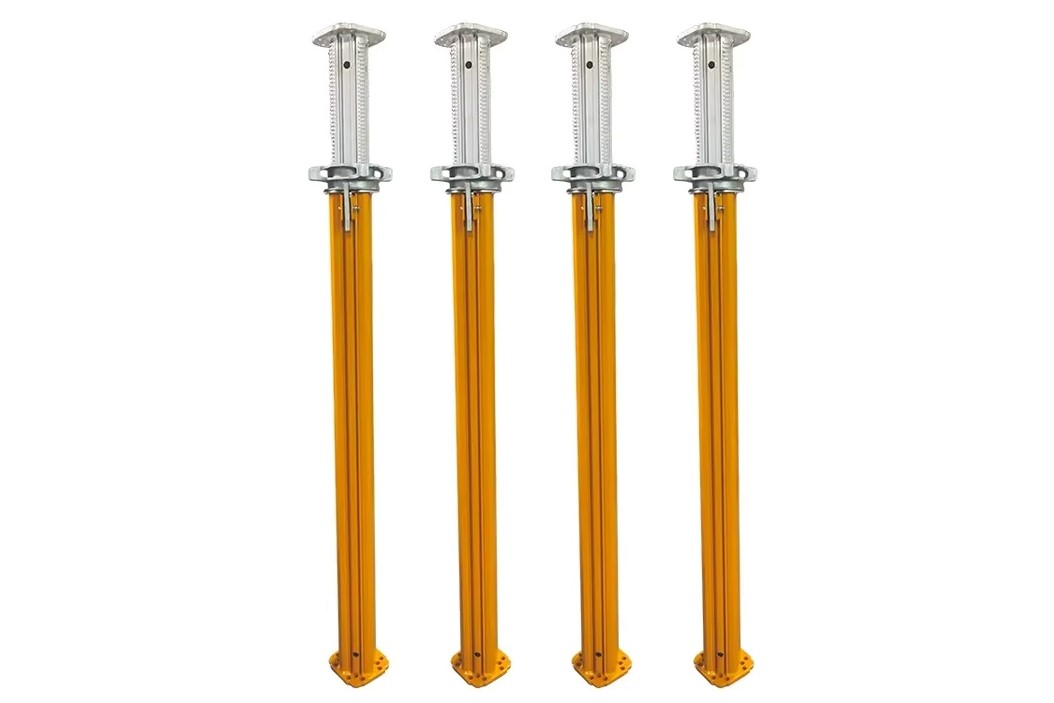

A typical aluminum shoring post consists of:

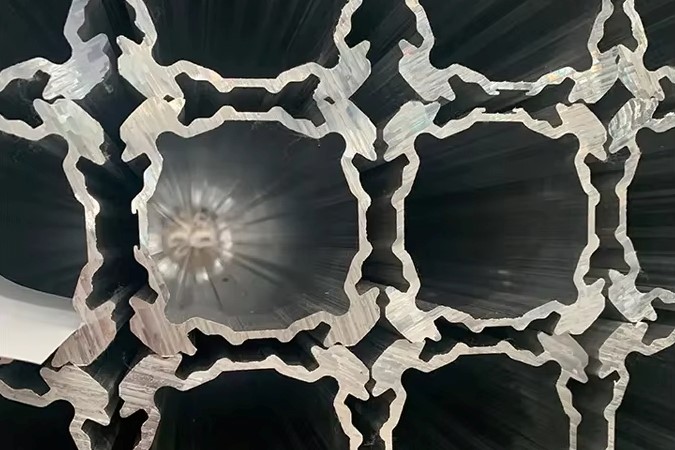

- Aluminum inner and outer tubes

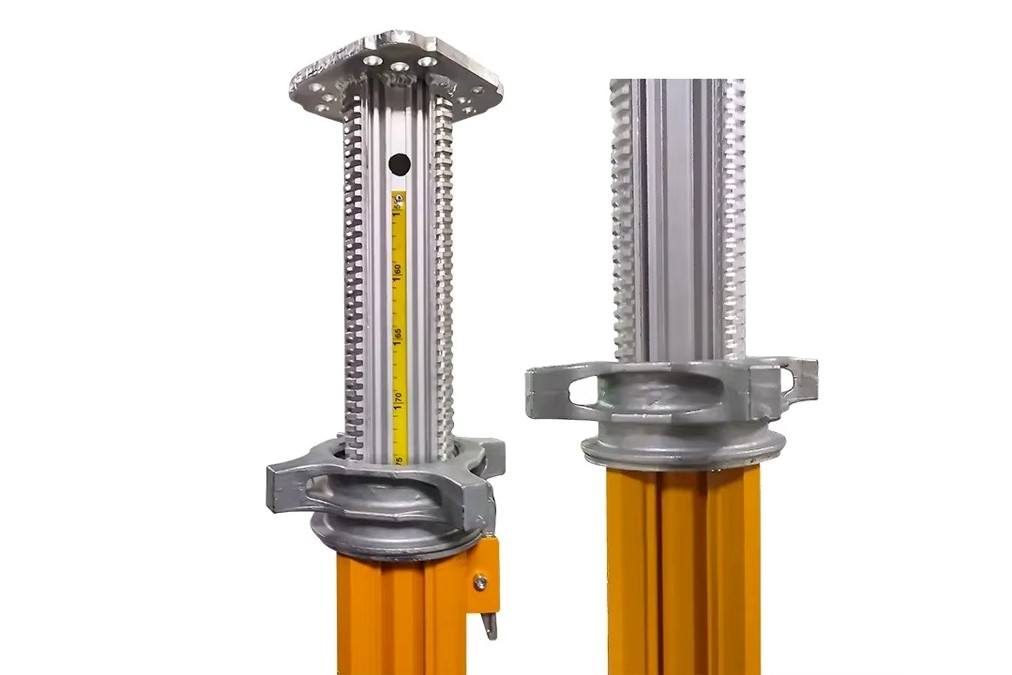

- Adjustable locking mechanism
- Base plate
- Head plate or U-head support
- Height adjustment components
Aluminum Shoring Post Specifications
APAC aluminum shoring posts are available in different sizes and configurations to meet various construction requirements.
| Specification | Details |
|---|---|
| Product Type | Slab Formwork Shoring Prop |
| Material | Aluminum Alloy 6061-T6 |
| Load Capacity | 20–90 kN |
| Maximum Working Load | Up to 90 kN |

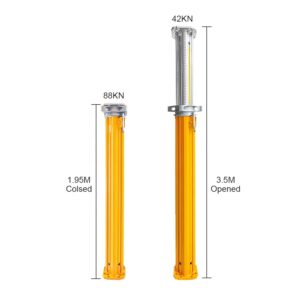

| Adjustable Height Range | 0.8–1.2 m / 1.45–2.5 m / 1.95–3.5 m / 2.6–4.8 m / 4.3–6.25 m |
| Standard Height Range | 1.95–3.5 m (6.40–11.48 ft) |

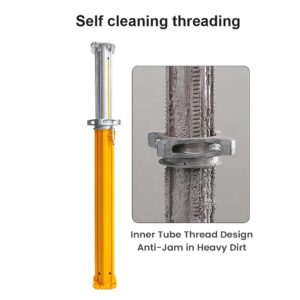

| Adjustment Mechanism | Screw Type |
| Locking System | Safety Pin |
| Unit Weight | 10.4 kg / 15.5 kg / 18.7 kg / 23.8 kg / 30.2 kg |
| Performance Level | High Strength, Corrosion Resistant |
| Surface Treatment | Powder Coated, High Corrosion Resistance |
| Application | Formwork Slab Support, Temporary Structural Support |
| Design Style | Modern |
| Service Support | Online Technical Support |
| Project Solution Capability | Online Technical Support, 3D Model Design |
| Place of Origin | China |
| Brand | OEM / ODM Available |
Why Choose APAC Aluminum Shoring Posts
APAC aluminum shoring posts are designed for buyers who need a balance of lightweight handling, reliable support, and construction efficiency. We focus on practical performance, consistent manufacturing, and export support to help customers source temporary support solutions with confidence.
Lightweight Design for Easier Handling
The biggest advantage of aluminum shoring posts is their reduced weight compared with traditional steel alternatives. This makes them easier to transport, carry, and install, especially on projects where supports need to be moved frequently.
- Significantly lighter than steel props
- Reduces manual handling effort
- Easier transportation and storage
- Improves installation efficiency on site
Faster Installation and Removal
In construction projects, reducing setup time can directly improve productivity. Aluminum shoring posts are easier to position, adjust, and remove, helping crews complete temporary support work more efficiently.
- Quick height adjustment
- Easier installation process
- Reduces labor time
- Suitable for fast-paced projects
Factory Direct Supply & OEM Support
APAC provides factory-direct aluminum shoring posts with professional manufacturing support. We help customers control cost, customize specifications, and develop products that better match their market requirements.
- Factory-direct supply advantage
- OEM and ODM support available
- Customized sizes and specifications
- Flexible packaging and branding options

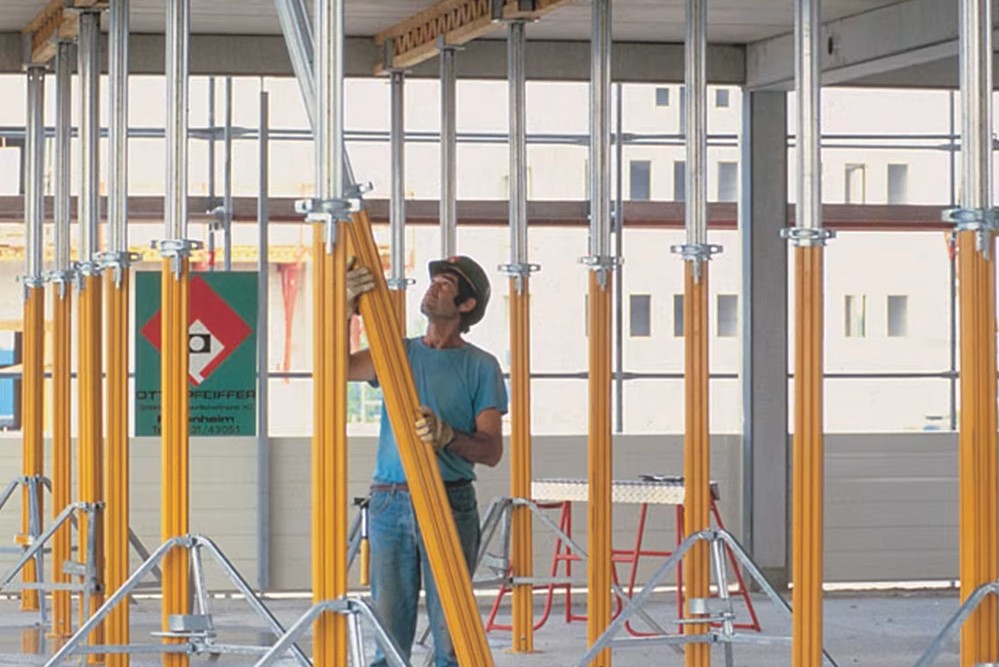

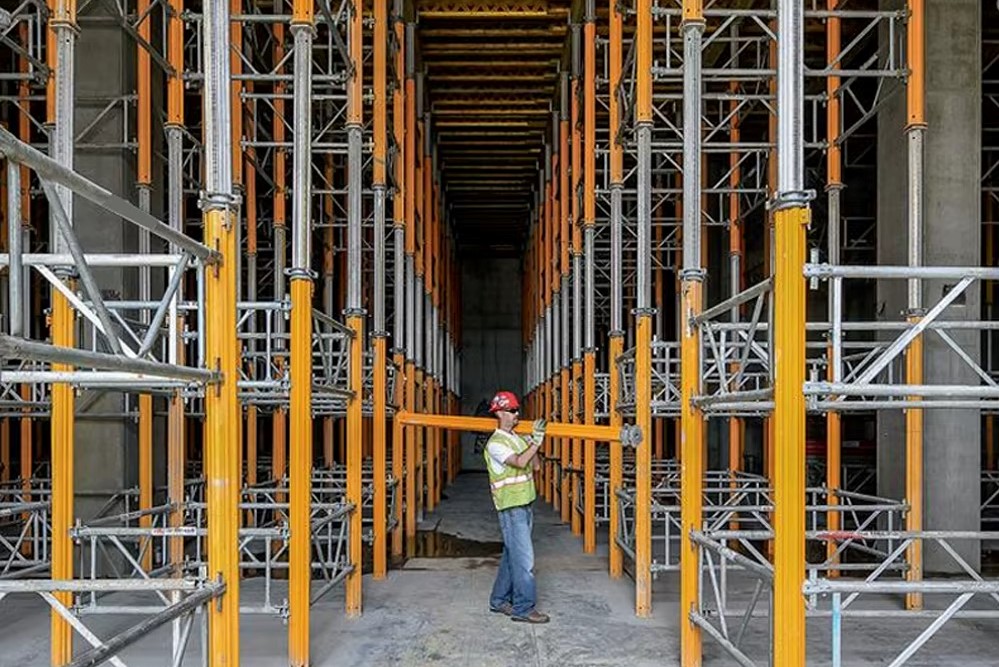

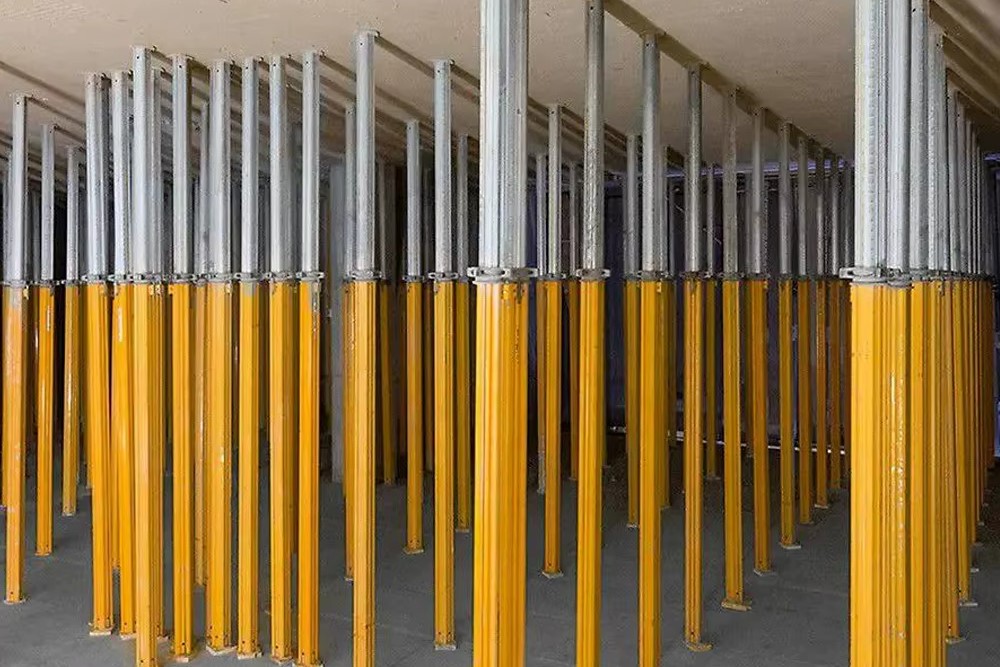

Applications of Aluminum Shoring Posts
Aluminum shoring posts are widely used in construction projects where lightweight and adjustable temporary support is required.

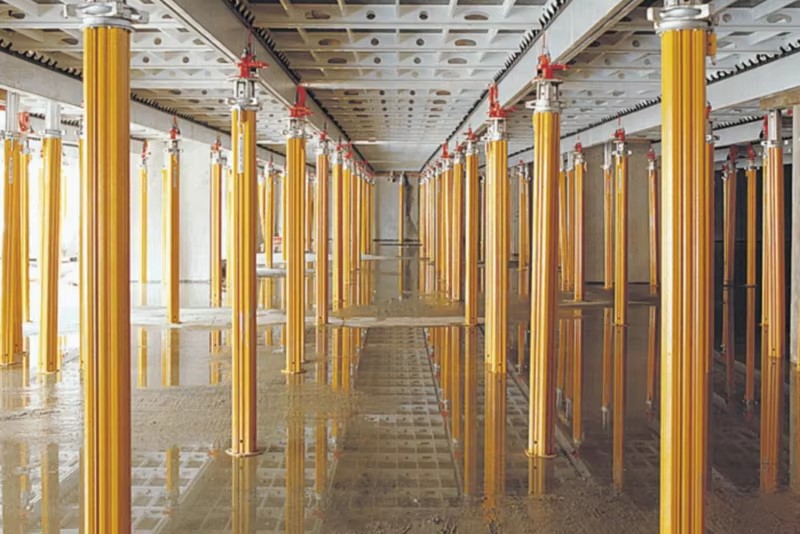

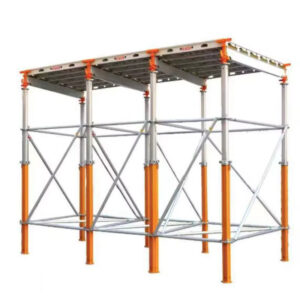

- Slab Formwork Support
- Beam and Ceiling Support
- Interior Construction
- Residential Construction
- Maintenance and Repair Projects
Aluminum Shoring Post | The Ultimate FAQ Guide
What is an aluminum shoring post?
An aluminum shoring post is an adjustable temporary support used for slabs, beams, ceilings, and formwork applications during construction.
What are the advantages of aluminum shoring posts?
The main advantages are lightweight handling, corrosion resistance, easy adjustment, faster installation, and improved jobsite efficiency.
Are aluminum shoring posts strong enough for construction use?
Yes. Aluminum shoring posts are designed for professional temporary support applications and provide reliable strength when selected and used correctly.
Are aluminum shoring posts better than steel props?
It depends on the application. Aluminum shoring posts are preferred when lightweight handling and mobility are important, while steel props are often selected for heavier-duty support requirements.
Can aluminum shoring posts be customized?
Yes. APAC supports OEM and ODM services, including customized sizes, specifications, and packaging requirements.
Related Products

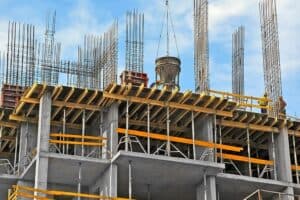

H20 beam
Learn More
Plywood Formwork
Learn More

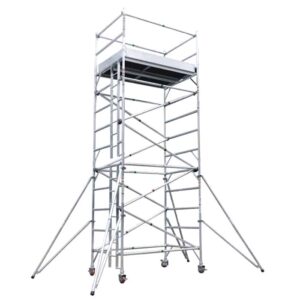

Aluminum Scaffold towers
